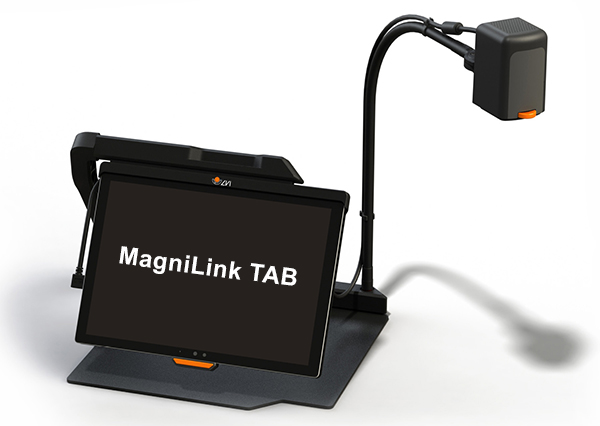

MagniLink TAB

A complete solution

This tablet solution based on a Microsoft Surface Pro with 12.3” screen gives the user a complete mobile solution. The unit is perfect for any smaller task, as well as for long term reading. Use it as a video magnifier with built in OCR, or as a complete computer with access to everything – gives endless possibilities!

Use the internal camera for reading or the high quality external camera (Full HD) for both distance and close-up viewing. This gives optimized possibilities for reading, writing and object viewing.

Connect and communicate

MagniLink TAB is easily connected to your network with WiFi, and you can use different accessories connected with Bluetooth. Internet and other standard applications are only a click away – with MagniLink TAB, you can easily communicate with the rest of the world!

Flexibility

MagniLink TAB has a touch screen with low vision adapted buttons. You can also control the unit by gestures or connect a Bluetooth keyboard and control it by hotkeys. The functionality is adaptable to the individual user by removing and customizing features.

Listen to your text

The high performance software is included, and with the built in OCR and Text to Speech, your text can be read aloud for the best possible experience. Several different viewing modes are available for increased reading speed, reading endurance and a more relaxed reading!

Truly mobile

MagniLink TAB is foldable and lightweight with easy and quick startup – you can start working almost immediately. This makes the unit ideal for use in the classroom and the workplace environment and also on the go!

MagniLink TAB – the low vision adapted solution for every need!

Three configurations are available!

The MagniLink TAB is available in three configurations. They all include the stand, external camera and software with Text-to-Speech (TTS). What sets the configurations apart is the following:

• The first configuration (MLTAB) includes a Microsoft Surface Pro Tablet with i5 processor and 8 GB RAM.
• The second configuration (MLTAB-P) includes a Microsoft Surface Pro Tablet with i7 processor and 16 GB RAM.
• The third configuration (MLTAB-SCS) does not include any tablet but an activation license for a tablet. Each individual is able to purchase a suitable Microsoft Surface Pro that meets the specific product requirements.


Technical specifications

Tablet and stand

Model:  Microsoft Surface Pro
Screen size:  12.3”
Resolution:  2736 x 1924
Dimensions folded:  14.4x11.8x1.2 in (WxDxH)
Dimensions unfolded:  9x12.2x13.8 in (WxDxH)
Weight:  6.4 Ibs

External distance camera, Full HD

Magnification:  0,8-40x (height 13 in)
Frame rate:  60 Hz
Length:  Camera and arm: 24.4 in
Weight: 1.6 Ibs

‍
